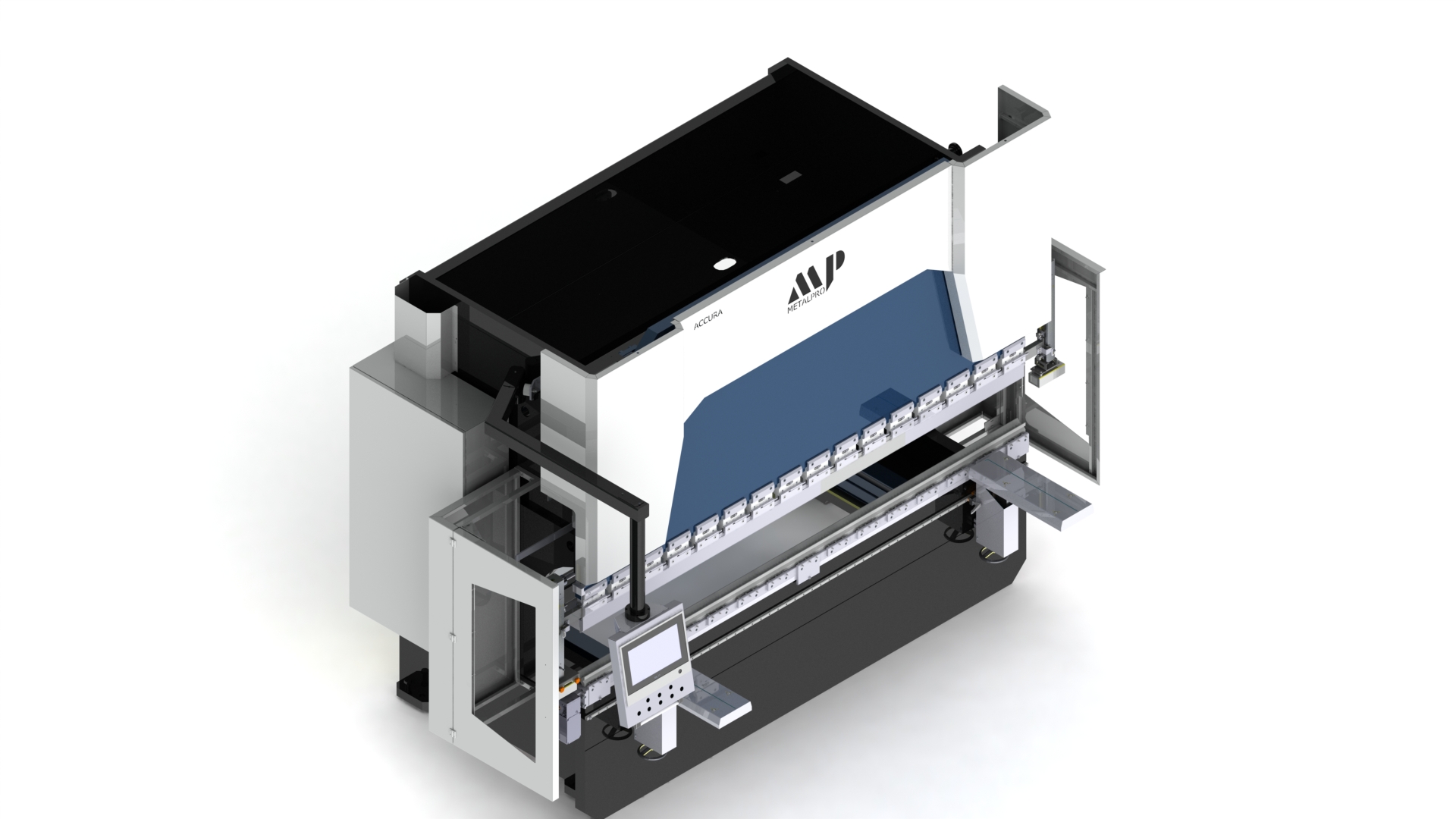

Accura is a versatile press brake designed to be utilized in low to medium volume/medium to high mix environments. It is an ideal press brake for customers that need frequent setups for their production but do not run products with uneven flanges or tapered edges that would require a six axis backgauge.
Whether you want to form a part by air bending, bottoming or hemming, Accura’s advanced angle calculation formula, precise servo hydraulic system and electronic linear scales ensure you get the right part every time.
The editable material database on Accura lets you add as many material as you want and even allows you to enter the springback of the material so the control can autocorrect angles to compensate for springback.
Standard Equipments
- Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified welders and machined to 0,01 mm precision in single piece.
- Step Automation Rock 17 (17″ 2D/3D) graphic touchscreen control.
- Dependable servo hydraulic system provided by Hoerbieger.
- Honed, chrome covered cylinders with high precision ground pistons
- Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend.
- 4 axis backgauge (X,R,Z1,Z2) running on ballscrews with servo motors to easily gauge complex parts.
- Hydraulic punch holder with vertical mount, auto seat and auto align function.
- European (or American) die holder with quick change mechanism.
- High stroke and daylight for deep box/panel bending.
- 500 mm throat depth to utilize full length and deep bends.
- High resolution linear scales with an accuracy of 0,01 mm for precise bending.
- Automatic crowning of die bed for even angles along full length of bend.
- Front support arms sliding on linear guides to easily gauge small parts.
Optional Equipments
- Front laser guards for finger protection.
- VisioForm LED bend guide system
- Custom design throat, stroke and daylight.
- CNC controlled bending aids in front to easily handle large plates.
- Real time angle measurement and correction system.
- Large selection of punches and dies.
- Tandem Preparation
- Automatic Lubrication System
