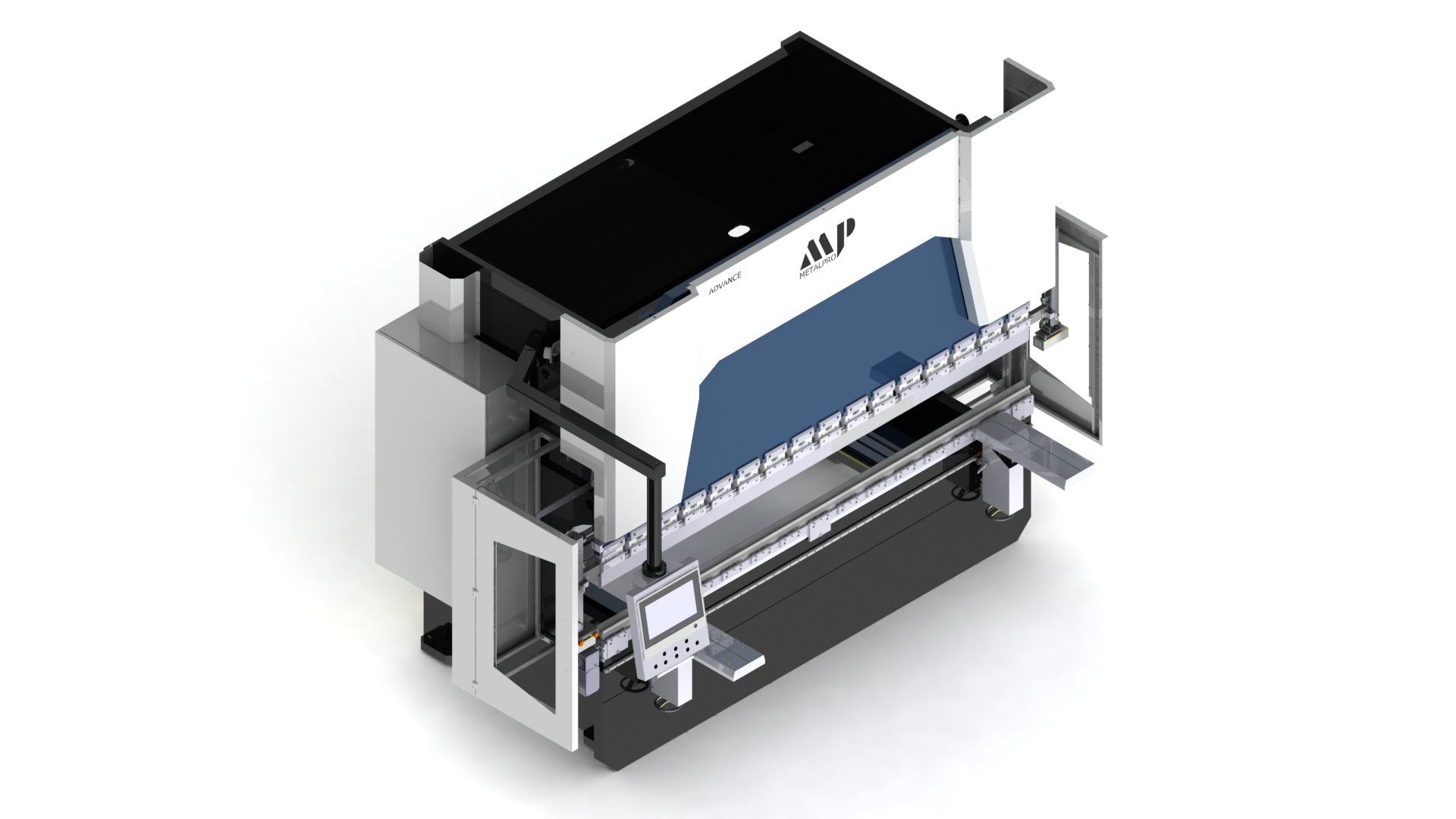

Advance is designed and built for production environments that process high volume/low mix products. Advance shares the same modular structure with Accura so customers purchasing Advance enjoy a rigid frame machined to 0,01 mm accuracy in single piece with a deep throat and high stroke/daylight that can form large format plates as well as deep box/panels.
Whether you want to form a part by air bending, bottoming or hemming, Advance’s advanced angle calculation formula, precise servo hydraulic system and electronic linear scales ensure you get the right part every time.
The editable material database on AdvanceForm lets you add as many material as you want and even allows you to enter the springback of the material so the control can autocorrect angles to compensate for springback.
Standard Equipments
- Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified welders and machined to 0,01 mm precision in single piece.
- Step Automation RK15 (15″ 2D) graphic touchscreen control.
- Dependable servo hydraulic system provided by Hoerbieger.
- Honed, chrome covered cylinders with high precision ground pistons
- Y1-Y2 synchronized hydraulic cylinders running on dual ram guides on each side for smooth ascend and descend.
- 2 axis backgauge (X,R)running on ballscrews with servo motors to easily gauge parts.
- European and/or American style punch clamps
- European die holder with quick change mechanism.
- Full length precision ground and hardened punch and 4V die set.
- Manual crowning of die bed for even angles along full length of bend.
- High stroke and daylight for deep box/panel bending.
- 500 mm throat depth to utilize full length and deep bends.
- High resolution linear scales with an accuracy of 0,01 mm for precise bending.
- Front support arms sliding on linear guides to easily gauge small parts.
Optional Equipments
- Front laser guards for finger protection.
- Automatic crowning of die bed for even angles along full length of bend.
- Custom design throat, stroke and daylight.
- Large selection of punches and dies.
- Tandem Preparation
- Automatic Lubrication System
